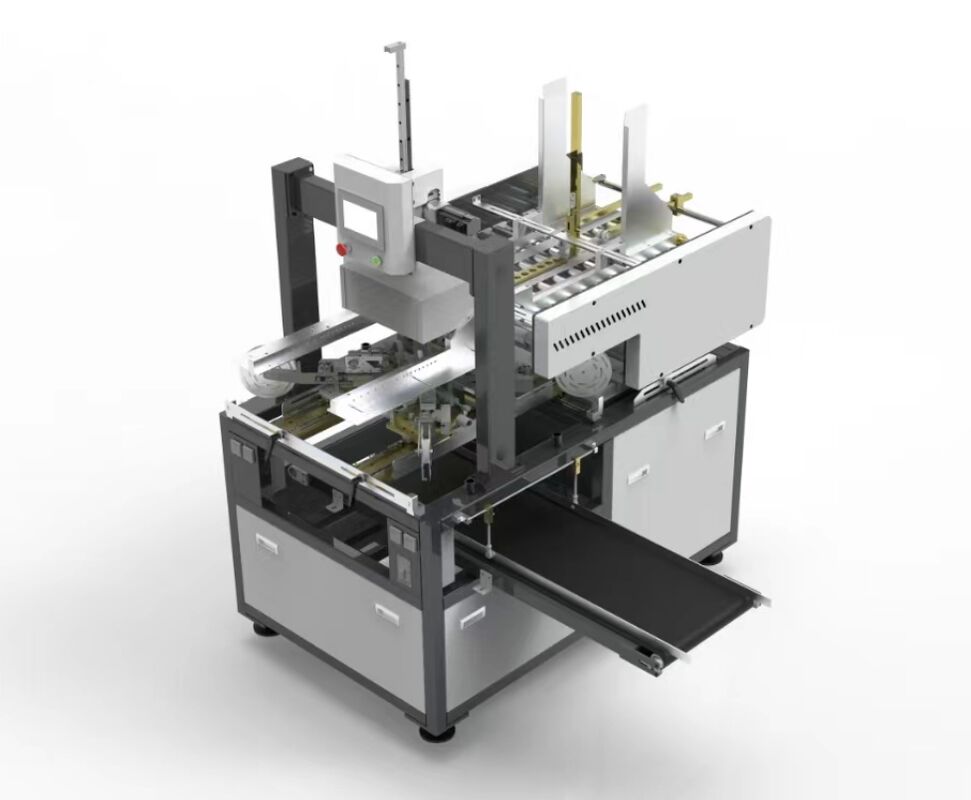

LY-430TJ Multiple Corner Pasting Machine
This automatic corner pasting machine is engineered to seamlessly paste corners for rigid and sleeve boxes. Driven by servo motors and PLC-controlled, the machine ensures accurate tape application via a user-friendly touch screen interface. A high-alloy tape slot prevents jamming, while the bottom feeder design enables non-stop operation, greatly boosting production efficiency for box manufacturers.
Key Features
- Driven by servo motor, and controlled by PLC.
- Operated by touch screen easy operating .
- Tape bale to be attached two bevel boxes, and the ultra-high boxes can be attached. Able to past corners twice to increase the firmness.
- Able to past the rigid box and sleeves boxes.
- All electric parts are from famous brand, low error and high precision.
- With malfunction alarm and fault display.
- Boards are fed from bottom, thus no need to stop the machine for adding boards.
- The main shaft adopts servo motor to drive the gear guide rail, making sure every accurate movement.

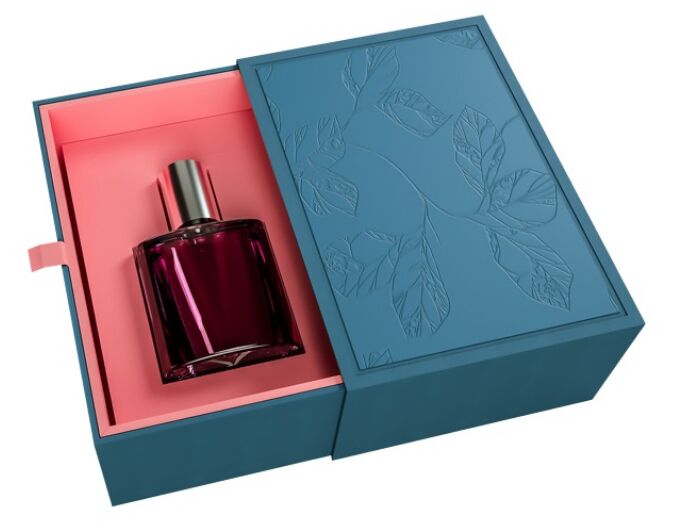

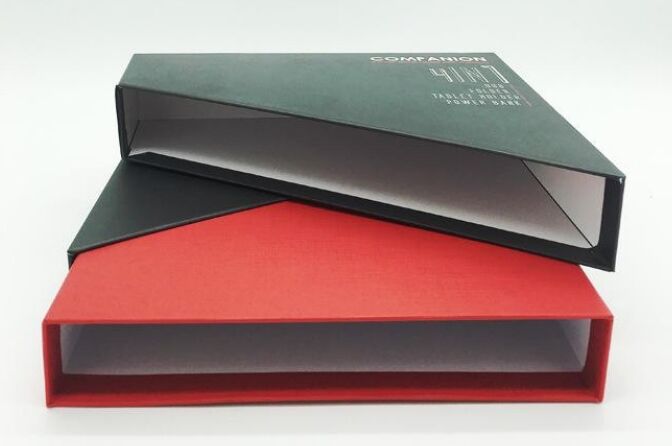

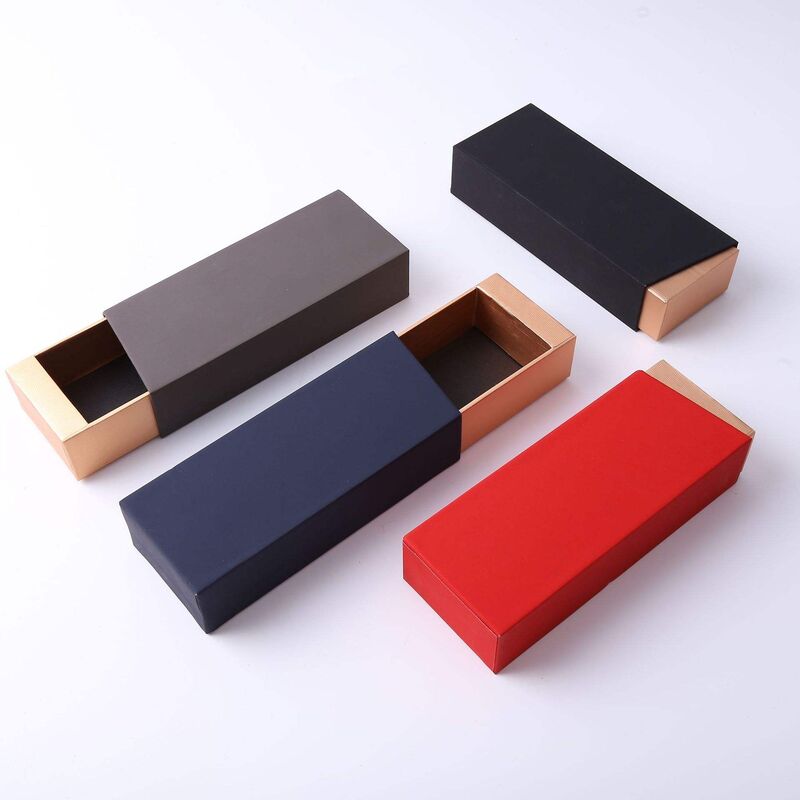

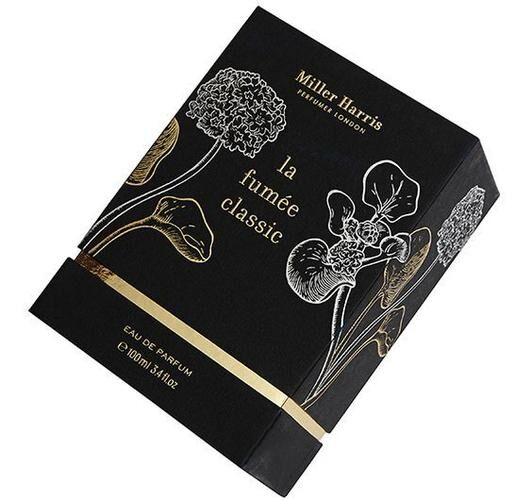

Product Examples
Product Types
Technical Specification
|
Model
|
LY-430TJ |
|
Thickness of board
|
1.0 - 5mm |
|
Maximum size for sleeve box
|
D200*330*100mm |
|
Minimum size for sleeve box
|
D50*50*20mm |
|
Capacity
|
45-55PCS/min |
|
Maximum size for rigid box
|
400*400*130mm |
|
Minimum size for rigid box
|
50*50*20mm |
|
Capacity
|
40-50PCS/min |
|
Power supply
|
220V/2KW |
|
Machine Power
|
3.5kw |
|
Air pressure
|
0.8pa |
|
Machine weight
|
1300KG |
|
Machine size
|
1670*1170*1880mm |
Packing and Shipping
Company Profile
Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.
Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.
Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the strategy of "Strive for Perfection, Forge New Paths," LiShunyuan is committed to R&D of high-performance, high-efficiency products for the packaging industry, driving intelligent automation advancement.
Our Services & Strengths
We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.
Certifications
Manufacturing Workshop
Industry Exhibitions
Quality After-Sales Service Commitment
- 1 Hour Service: We respond to service requests within one hour with solution recommendations
- 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
- Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
- Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
- Pre-sale Service: Comprehensive training programs with professional engineers before delivery
- Sale Services: Installation, debugging, and one week of free training services upon machine arrival
- After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
