Name: LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: LY-750B
Price: 17500 USD
Availability: InStock

À la maison > produits > machine de empâtage faisante le coin de boîte >

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

LY-750B automatic corner pasting machine

intelligent setup corner pasting machine

sleeve box corner pasting machine

Lieu d'origine:

Chine

Nom de marque:

Lishunyuan

Certification:

Numéro de modèle:

LY-750B

Documents:

LY-750B Automatic Corner Pa...up.pdf

Contactez-nous

Demandez un devis

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Détails du produit

Modèle:

LY-750B

Format papier maximum:

740*640mm

Épaisseur du papier:

1-4mm

Taille de la boîte (max):

L500*L400*H150mm

Taille de la boîte (min):

L80*W60*H20 mm

Taille de la boîte de manchon (max):

L400*L120*H150mm

Taille de la boîte de manchon (min):

L80*W30*H20mm

Taille de pile de papier:

1000mm

Vitesse de production:

25-45 pièces/min

Alimentation:

380 V/50 Hz

Puissance totale:

3,88 kW

Pression atmosphérique:

0,5-0,8 MPA

Taille de la largeur du ruban:

19 mm

Poids de la machine:

1280KG

Taille de la machine:

2250*2100*2200mm

Mettre en évidence:

LY-750B automatic corner pasting machine

intelligent setup corner pasting machine

sleeve box corner pasting machine

Conditions de paiement et d'expédition

Quantité de commande min

Prix

Negotiate

Détails d'emballage

caisse en film et contreplaqué

Délai de livraison

15-20 jours

Conditions de paiement

T/T

Capacité d'approvisionnement

15 SETS/MONTH

Produits connexes

Machine de collage de coins multiples, Machine de collage de coins, boîte à manchons, LY-430TJ

Obtenez le meilleur prix

Vidéo

LY-750 Machine à coller les coins de boîte avec applicateur de renforcement de coin entièrement automatisé pour un traitement rapide et précis du carton

Obtenez le meilleur prix

LY-TJ40 Machine de collage semi-automatique de boîtes à coins vitesse de fonctionnement 20 - 40 PCS / min

Obtenez le meilleur prix

Vidéo

LY-750 85 pièces/min Machine de collage de coin entièrement automatisée

Obtenez le meilleur prix

Contactez-nous

+86-13802379158

aureal@dglyjx.com

86-769-23174590

Contactez-nous maintenant

Description du produit

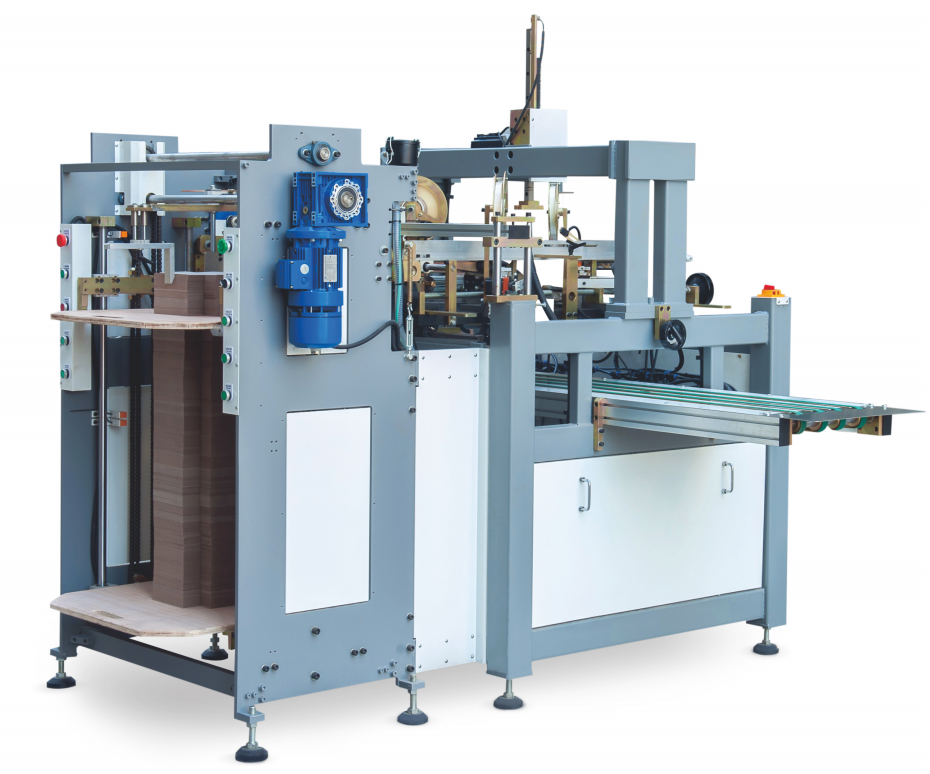

LY-750B Automatic Corner Pasting Machine (Intelligent Setup)

This automatic corner pasting machine is engineered to seamlessly paste corners for rigid and sleeve boxes. Driven by servo motors, the machine ensures accurate tape application via a user-friendly touch screen interface. A high-alloy tape slot prevents jamming, while the bottom feeder design enables non-stop operation, greatly boosting production efficiency for box manufacturers.

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Key Features

Intelligent setup interface system, which is simple, easy to learn, understand and operate.
Setting up time in 10mins.
The full servo drive control system and PLC programming ensure the accuracy and performance of the product.
Non-stop feeding, reduce labor intensity,decrease machine stopping time .
The paper feeding adopts a belt-driven pull-out system, effectively increasing production output.
Compatible with PET and kraft paper tape, providing a variety of options for your products.
The production efficiency of this machine is 3 to 5 times that of traditional manual corner pasting.
Multiple functions able to do square boxes and sleeves boxes.

Product Examples

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Product Types

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Technical Specification

Model	LY-750B
Maximum paper size	740*640mm
Paper thickness	1-4mm
Box size(max)	L500W400H150mm
Box size(min)	L80W60H20mm
Sleeve box size(max)	L400W120H150mm
Sleeve box size(min)	L80W30H20mm
Paper stack height	1000mm
Production speed	25-45 pcs/min
Power supply	380V/50Hz
Total power	3.88kw
Air pressure	0.5-0.8Mpa
Tape width size	19mm
Machine dimension	255021002200mm
Machine weight	1280kg

Packing and Shipping

Company Profile

Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.

Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.

Our Services & Strengths

We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.

Certifications

Quality After-Sales Service Commitment

1 Hour Service: We respond to service requests within one hour with solution recommendations
12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
Pre-sale Service: Comprehensive training programs with professional engineers before delivery
Sale Services: Installation, debugging, and one week of free training services upon machine arrival
After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
